◆ 采用高品質LT型硅鋼片和H級漆包線，塑料配件阻燃性能V0級。
◆ 執行標準：UL1029。
◆ 抗電壓波動能力強，燈的色溫偏差更少，燈的工作更穩定更長壽。
◆ 產品適應多種輸入電源使用環境。
◆ 鎮流器最高額定溫度tw=200℃。
High power factor ballasts for American standard high pressure sodium? lamp |
Fit lamps |
||||||||||
HX-HPF美規高壓鈉燈高阻抗升壓式鎮流器 |
匹配燈管 |
||||||||||
Model |
Input Voltage |
Circuit power factor |
Input watt |
Working current |
Open voltage |
Capacitor |
Electronic ignitor |

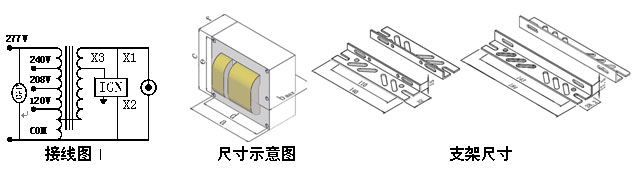

Wiring diagram |
Fuse rating |
Power |
ASN Code |
電源電壓 |
線路功率因數 |
輸入功率 |
線路工作電流 |
開路電壓 |
補償電容 |
觸發器 |
接線圖 |
保險絲 |
功率 |
型號 |
|
(V/Hz) |
COSφ |
(W) |
(A) |
(V) |
(μf/V) |
(A) |
（W） |
||||
HD12060HPS50HX |
120/208/240/277V～60Hz |
≥0.9 |
66 |
0.61/0.35/0.30/0.27 |
120 |
5/300 |
HDCD-H103 |
I |
3/1/1/1 |
50 |
S-68 |
HD12060HPS70HX |
120/208/240/277V～60Hz |
≥0.9 |
91 |
0.79/0.45/0.40/0.35 |
120 |
8/300 |
HDCD-H103 |
I |
5/3/2/2 |
70 |
S-62 |
HD12060HPS100HX |
120/208/240/277V～60Hz |
≥0.9 |
130 |
1.11/0.65/0.55/0.50 |
120 |
10/300 |
HDCD-H103 |
I |
7/5/3/3 |
100 |
S-54 |
HD12060HPS150HX |
120/208/240/277V～60Hz |
≥0.9 |
185 |
1.62/0.94/0.81/0.70 |
120 |
14/300 |
HDCD-H103 |
I |
10/5/4/4 |
150 |
S-55 |
?
Model |
產品尺寸Size(mm) |
Packing Size |
Quantity |
Weight |
|||||
型號 |
a |
b |
c |
d |
e |
f |
包裝箱尺寸 |
數量(PCS) |
重量(KG) |
HD12060HPS50HX |
100 |
58 |
71 |
89 |
62 |
28 |
272×220×86 |
8 |
15.1 |
HD12060HPS70HX |
100 |
72 |
71 |
89 |
62 |
40 |
246×220×86 |
6 |
14.7 |
HD12060HPS100HX |
100 |
74 |
71 |
89 |
62 |
42 |
276×220×86 |
6 |
15.9 |
HD12060HPS150HX |
100 |
100 |
71 |
89 |
62 |
65 |
220×220×86 |
4 |
14.5 |
