◆ 采用高品質LT型硅鋼片和H級漆包線，塑料配件阻燃性能V0級。
◆ 執行標準：UL1029。
◆ 抗電壓波動能力強，燈的色溫偏差更少，燈的工作更穩定更長壽。
◆ 產品適應多種輸入電源使用環境，鎮流器最高額定溫度tw=200℃。
CWA type for American standard high pressure sodium lamp |
Fit lamps |
||||||||||
CWA美規高壓鈉燈漏磁鎮流器 |
匹配燈管 |
||||||||||
Model |
Input Voltage |
Circuit power factor |
Input watt |
Working current |
Open voltage |
Capacitor |
Electronic ignitor |

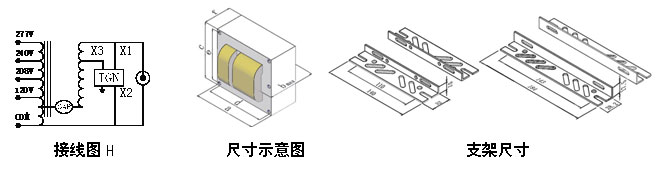

Wiring diagram |
Fuse rating |
Power |
ASN Code |
電源電壓 |
線路功率因數 |
輸入功率 |
線路工作電流 |
開路電壓 |
啟動電容 |
觸發器 |
接線圖 |
保險絲規格 |
功率 |
型號 |
|
(V/Hz) |
COSφ |
(W) |
(A) |
(V) |
(μf/V) |
(A) |
（W） |
||||
HD27760HPS250L |
120/208/240/277V～60Hz |
≥0.9 |
295 |
2.60/1.50/1.29/1.12 |
185 |
35/300 |
HDCD-H203 |
H |
7/4/3/3 |
250 |
S-50 |
HD27760HPS400L |
120/208/240/277V～60Hz |
≥0.9 |
464 |
4.07/2.35/2.04/1.77 |
190 |
55/300 |
HDCD-H203 |
H |
10/8/5/5 |
400 |
S-51 |
HD27760HPS600L |
120/208/240/277V～60Hz |
≥0.9 |
665 |
5.82/3.36/2.92/2.53 |
230 |
64/300 |
HDCD-H203 |
H |
15/9/8/7 |
600 |
S-106 |
HD27760HPS1000L |
120/208/240/277V～60Hz |
≥0.9 |
1100 |
9.36/5.41/4.69/4.08 |
435 |
26/540 |
HDCD-H303 |
H |
25/15/15/10 |
1000 |
S-52 |
?
Model |
產品尺寸Size(mm) |
Packing Size |
Quantity |
Weight |
|||||
型號 |
a |
b |
c |
d |
e |
f |
包裝箱尺寸 |
數量(PCS) |
重量(KG) |
HD27760HPS250L |
121 |
90 |
108 |
111 |
98 |
46 |
310×141×128 |
3 |
15.9 |
HD27760HPS400L |
121 |
102 |
108 |
111 |
98 |
58 |
234×141×128 |
2 |
13.5 |
HD27760HPS600L |
152 |
130 |
108 |
124 |
99 |
80 |
172×145×128 |
1 |
11.3 |
HD27760HPS1000L |
152 |
147 |
108 |
124 |
99 |
95 |
172×162×128 |
1 |
13.3 |
