◆ 采用高品質LT型硅鋼片和H級漆包線，塑料配件阻燃性能V0級。
◆ 執行標準：UL1029。
◆ 抗電壓波動能力強，燈的色溫偏差更少，燈的工作更穩定更長壽。
◆ 產品適應多種輸入電源使用環境。
◆ 鎮流器最高額定溫度tw=200℃。
CWA Type for American standard metal halide lamp |
Fit lamps |
|||||||||
CWA美規金鹵燈漏磁鎮流器 |
匹配燈管 |
|||||||||
Model |
Input Voltage |
Circuit power factor |
Input watt |
Working current |
Open voltage |
Capacitor |

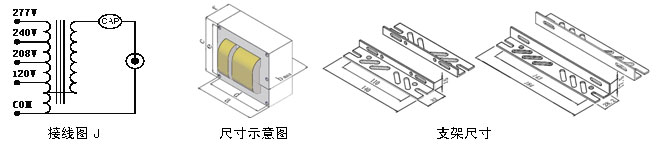

Wiring diagram |
Fuse rating |
Power |
ASN Code |
電源電壓 |
線路功率因數 |
輸入功率 |
線路工作電流 |
開路電壓 |
啟動電容 |
接線圖 |
保險絲規格 |
功率 |
型號 |
|
(V/Hz) |
COSφ |
(W) |
(A) |
(V) |
(μf/V) |
(A) |
（W） |
|||
HD27760MH175L |
120/208/240/277V～60Hz |
≥0.9 |
210 |
1.84/1.06/0.92/0.80 |
280 |
10/400 |
J |
5/3/3/2 |
175 |
M-57 |
HD27760MH250L |
120/208/240/277V～60Hz |
≥0.9 |
295 |
2.58/1.48/1.28/1.12 |
300 |
15/400 |
J |
8/5/5/3 |
250 |
M-58 |
HD27760MH400L |
120/208/240/277V～60Hz |
≥0.9 |
458 |
4.01/2.31/2.00/1.74 |
295 |
24/400 |
J |
10/7/5/5 |
400 |
M-59 |
HD27760MH1000L |
120/208/240/277V～60Hz |
≥0.9 |
1080 |
9.46/5.45/4.72/4.11 |
380 |
24/480 |
J |
20/15/15/10 |
1000 |
M-47 |
HD27760MH1500L |
120/208/240/277V～60Hz |
≥0.9 |
1605 |
14.08/8.12/7.04/6.10 |
410 |
32/540 |
J |
30/25/20/15 |
1500 |
M-48 |
?
Model |
產品尺寸Size(mm) |
Packing Size |
Quantity |
Weight |
|||||
型號 |
a |
b |
c |
d |
e |
f |
包裝箱尺寸 |
數量(PCS) |
重量(KG) |
HD27760MH175L |
100 |
94 |
71 |
90 |
62 |
64 |
230×220×86 |
4 |
13.9 |
HD27760MH250L |
121 |
76 |
108 |
111 |
98 |
38 |
272×182×123 |
4 |
17.9 |
HD27760MH400L |
121 |
99 |
108 |
111 |
98 |
51 |
337×141×123 |
3 |
17.1 |
HD27760MH1000L |
152 |
115 |
108 |
124 |
99 |
71 |
172×135×123 |
1 |
11.0 |
HD27760MH1500L |
152 |
160 |
108 |
124 |
99 |
110 |
180×170×123 |
1 |
15.1 |
