◆ 采用高品質硅鋼片和漆包線，溫升低，電氣性能優越。
◆ 執行標準：GB19510.1-2004、GB19510.10-2004、GB/T15042-2005。
◆ 產品通過3C、CE認證，塑料配件阻燃性能V0級，并符合RoHS2002\95\EC指令標準。
◆ 鎮流器最高額定溫度tw=130℃，額定溫升85K，正常使用壽命長達10年。
Ballasts for stage lamp? |
Fit Lamps |
|||||||||
匹配燈管 | ||||||||||
Model |
Input Voltage |
Power factor |
Temperature |
Start current |
Capacitor |
Electronic ignitor |

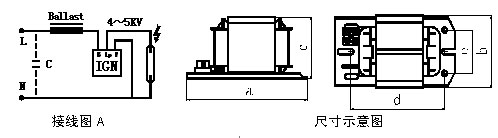

Wiring diagram |
Power |
Voltage |
Current |
電源電壓 |
功率因數 |
溫升 △t |
啟動電流 |
補償電容 |
觸發器 |
接線圖 |
功率 |
管壓 |
電流 |
|
(V/Hz) |
COSφ |
(k) |
(A) |
(μf/V) |
（W） |
(V) |
(A) |
|||
HD23050WT150ZA |
230V 50Hz |
0.42 |
75 |
2.3 |
18/300 |
HDCD-7 |
A |
150 |
100 |
1.60 |
HD23050WT150ZB |
230V 50Hz |
0.42 |
80 |
2.6 |
18/300 |
HDCD-7 |
A |
150 |
90 |
1.80 |
HD23050WT200ZA |
230V 50Hz |
0.50 |
80 |
5.5 |
32/300 |
HDCD-7 |
A |
200 |
80 |
3.10 |
HD23050WT200ZB |
230V 50Hz |
0.50 |
80 |
5.7 |
32/300 |
HDCD-7 |
A |
200 |
70 |
3.30 |
HD23050WT250ZA |
230V 50Hz |
0.37 |
80 |
5.5 |
32/300 |
HDCD-7 |
A |
250 |
100 |
3.00 |
HD23050WT250ZB |
230V 50Hz |
0.37 |
80 |
5.0 |
32/300 |
HDCD-7 |
A |
250 |
90 |
3.00 |
HD23050WT300Z |
230V 50Hz |
0.56 |
80 |
6.6 |
35/300 |
HDCD-7 |
A |
300 |
100 |
3.60 |
HD23050WT400ZA |
230V 50Hz |
0.41 |
85 |
6.5 |
50/300 |
HDCD-7 |
A |
400 |
95 |
4.70 |
HD23050WT400ZB |
230V 50Hz |
0.46 |
85 |
6.5 |
50/300 |
HDCD-7 |
A |
400 |
110 |
4.10 |
HD23050WT575Z |
230V 50Hz |
0.40 |
85 |
8.5 |
60/300 |
HDCD-NH |
A |
575 |
95 |
7.00 |
HD23050WT1200Z |
230V 50Hz |
0.36 |
85 |
20.7 |
120/300 |
HDCD-12 |
A |
1200 |
100 |
13.8 |
HD23050WT1800Z |
230V 50Hz |
0.36 |
85 |
23.0 |
180/300 |
HDCD-20 |
A |
1800 |
120 |
17.3 |
HD23050WT2000Z |
230V 50Hz |
0.36 |
85 |
22.0 |
180/300 |
HDCD-20 |
A |
2000 |
130 |
16.5 |
HD23050WT2500Z |
230V 50Hz |
0.36 |
85 |
33.0 |
240/300 |
HDCD-25 |
A |
2500 |
100 |
25.6 |
?
Model |
Size產品尺寸 |
Packing Size |
Quantity |
Weight |
||||
型號 |
a |
b |
c |
d |
e |
包裝箱尺寸 |
數量(PCS) |
重量(KG) |
HD23050WT150ZA |
128 |
75 |
64 |
104 |
45 |
296×178×162 |
8 |
16.5 |
HD23050WT150ZB |
128 |
75 |
64 |
104 |
45 |
296×178×162 |
8 |
16.7 |
HD23050WT200ZA |
150 |
75 |
64 |
126 |
45 |
320×250×90 |
6 |
17.5 |
HD23050WT200ZB |
150 |
75 |
64 |
126 |
45 |
320×250×90 |
6 |
17.8 |
HD23050WT250ZA |
150 |
75 |
64 |
126 |
45 |
320×250×90 |
6 |
17.5 |
HD23050WT250ZB |
150 |
75 |
64 |
126 |
45 |
320×250×90 |
6 |
17.0 |
HD23050WT300Z |
150 |
75 |
64 |
126 |
45 |
320×178×85 |
6 |
17.5 |
HD23050WT400ZA |
158 |
96 |
82 |
134 |
61 |
340×211×104 |
4 |
19.5 |
HD23050WT400ZB |
158 |
96 |
82 |
134 |
61 |
340×211×104 |
4 |
18.9 |
HD23050WT575Z |
195 |
96 |
82 |
180 |
61 |
340×211×104 |
4 |
19.5 |
HD23050WT1200Z |
230 |
114 |
97 |
202 |
80 |
210×210×95 |
2 |
13.5 |
HD23050MH1800Z |
146 |
152 |
130 |
127 |
124 |
172×166×145 |
1 |
15.5 |
HD23050MH2000Z |
146 |
152 |
130 |
127 |
124 |
172×166×145 |
1 |
15.5 |
HD23050MH2500Z |
160 |
152 |
130 |
141 |
124 |
180×166×145 |
1 |
18.2 |
